Every fiber optic link loses some signal along the way. That's not a design flaw; it's just physics. But with approximately 1.2 billion kilometers of fiber optic cabling deployed each year globally,1 accounting for that loss is critical to ensuring your carefully planned infrastructure performs.
Understanding fiber loss – what causes it, how it's measured, and how to calculate it before you pull cable – is essential for anyone specifying or managing commercial fiber infrastructure. Here’s what you need to know.
TL;DR
-
Fiber optic loss is the reduction in optical power as light travels through a fiber link, caused by absorption, scattering, connectors, splices, and bends, and measured logarithmically in decibels.
-
Calculating total link loss before installation and comparing it to your transceiver's power budget, with a safety margin, tells you whether a link will work before you pull cable.
-
After installation, OLTS and OTDR testing certifies that every run performs to spec and establishes a documented baseline for troubleshooting later problems.
What Are Fiber Optic Loss & Optical Fiber Attenuation?
Fiber optic loss, also called optical loss or optical fiber attenuation, refers to how much optical power is reduced as a signal travels through a fiber link. Light attenuates as it travels through glass, scatters at connection points, and bends around corners.
Optical loss is measured in decibels (dB), where a higher dB value indicates more signal loss. Attenuation is expressed as loss per unit of distance (dB/km) for the fiber cable itself, while individual components like connectors and splices are assigned fixed loss values per event.
dB loss in fiber is logarithmic, not linear. A 3 dB loss means half the optical power has been lost. A 10 dB loss means 90% of the power is gone. That’s why small differences in dB loss values have a disproportionate impact on whether a link works reliably – especially over long distances or with multiple loss contributors in series.
What Is dB Loss In Fiber Optics?
Knowing where fiber loss comes from can help you design links that stay within budget and troubleshoot links that don't perform as expected.

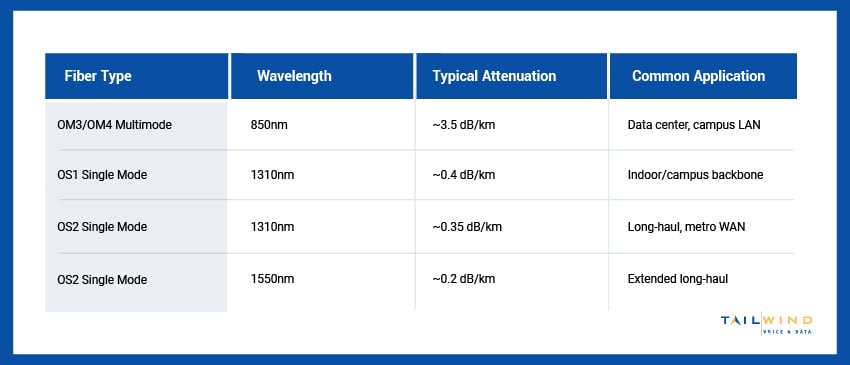

Attenuation varies by fiber type and operating wavelength. Here’s a breakdown:
Single-mode fiber's dramatically lower attenuation per kilometer is the primary reason it's specified for any run where distance matters – backbone infrastructure, inter-building links, campus connectivity, and carrier WAN circuits.
How Does Connector Loss In Optical Fiber Contribute To Total Link Loss?
Connector losses in optical fiber are a fixed loss budget item. Every connector pair in a link adds loss, regardless of run length. The typical values are:
- LC/SC UPC Connector Pair: 0.3 dB, standard for most commercial installations
- LC/SC APC Connector Pair: 0.2 dB, better performance due to angled polish, used in RF and long-haul applications
- MPO/MTP Connector: 0.5–0.75 dB, higher loss due to multi-fiber alignment complexity
Fiber connector loss is one of the most controllable variables in a fiber deployment, provided there’s inspection and cleaning before every mating. For example, a properly cleaned LC connector pair will consistently perform near 0.1–0.2 dB, but a contaminated connector can introduce several dB of loss that pushes the link over budget.
Structured cabling installations that include post-termination insertion loss testing on every connector pair can also help, as a certified result proves the fiber connector loss is within spec – not just assumed to be.
Other Sources Of Optical Loss In Fiber Networks
Several other factors beyond cable attenuation and connector loss contribute to total link loss, including:
Splice Loss
Fiber splice loss accumulates in long fiber runs requiring multiple cable sections, so it must be included in the link budget calculation.
Fusion splices, where the fiber ends are melted together, typically add 0.02–0.1 dB per splice. Mechanical splices, which align fibers using a mechanical fixture, add 0.1–0.5 dB and are generally used only for temporary repairs.
Bend Loss
Fiber loses signal when bent too tightly – the light can no longer be fully contained within the core by total internal reflection.
Macrobend loss occurs when fiber is routed around a corner radius smaller than its minimum bend radius specification (typically 10–15× the cable diameter). Microbend loss comes from small deformations caused by pinching, kinking, or improper cable management.
Both are preventable with proper installation practices.
Why Should You Measure Fiber Optic Loss In Installed Infrastructure?
Calculating expected loss before installation is an essential part of infrastructure planning. If your calculated link loss exceeds your transceiver's power budget, you'll know before pulling cable and can adjust your design – while discovering this problem post-deployment means rework, downtime, and lost productivity.
Measuring loss after installation is equally important. This figure confirms that the link is performing as designed and provides documented proof that installation quality meets specification. This testing also establishes a baseline for troubleshooting if problems develop later.
The two tools standard for verifying link performance in professional fiber certification are:
- OLTS (Optical Loss Test Set): Measures end-to-end insertion loss for the entire link. This is the primary certification measurement, so every run in a professional installation should have a documented OLTS result.
- OTDR (Optical Time-Domain Reflectometer): Sends a light pulse down the fiber and analyzes reflections to quantify individual loss events along the run. It identifies where loss is occurring, not just how much total loss exists.
Both measurements should be part of the documentation package delivered by any professional fiber cabling installer. TailWind’s structured cabling projects include OLTS and OTDR results as standard deliverables – giving you documented proof that every run meets spec, not just a verbal assurance.
How To Calculate Fiber Loss: The Link Budget Method
Calculating fiber loss before deployment tells you whether a planned link will work with your transceiver equipment. The process is called a link budget calculation. Here are the basic steps:
Step 1: Calculate Cable Attenuation
Multiply the fiber's attenuation coefficient (dB/km) by the run’s total length in kilometers.
Let’s say you’re implementing a 2 km campus backbone run with standard components. You've selected OS1 single-mode fiber, decided on four LC/SC UPC connector pairs, and planned two fusion splices where cable sections join.
For this step, you’d multiply the typical attenuation for OS1 single-mode fiber (0.4 dB/km) by 2 km.
0.4 dB/km × 2km = 0.8 dB
Step 2: Add Connector Losses
Multiply the number of connector pairs by the per-pair loss.
Continuing with our hypothetical scenario, you’re going to multiply the four connector pairs by the typical per-pair loss, which is 0.3 dB for LC/SC UPC connector pairs.
4 connector pairs × 0.3 dB = 1.2 dB
Step 3: Add Splice Losses
Multiply the number of splices by the per-splice loss.
Now, you would multiply the two splices by the typical per-splice loss, which ranges from 0.02 to 0.1 dB for fusion splices. We’ll use the upper limit here to be safe.
2 splices × 0.1 dB = 0.2 dB
Step 4: Sum Total Link Loss

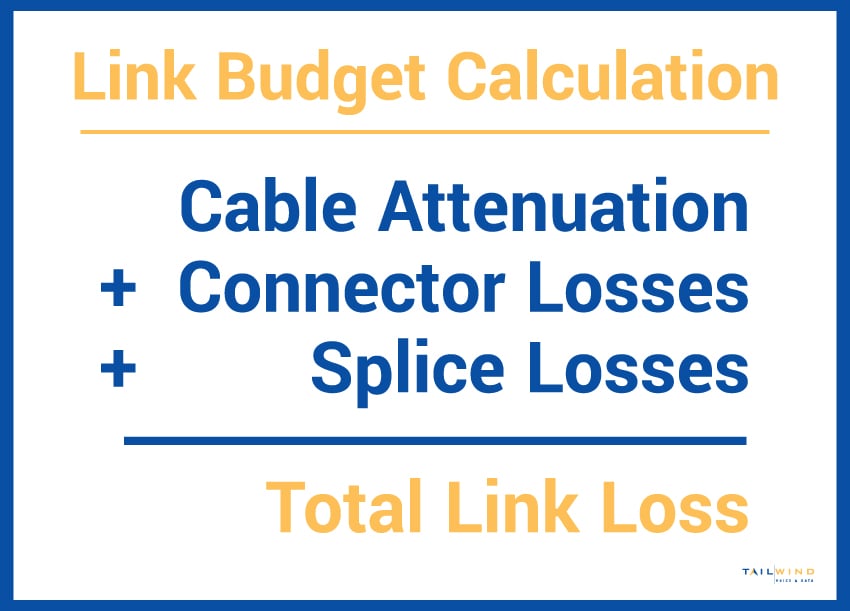

Add the cable attenuation, connector loss, and splice loss values together to get the total link loss.
0.8 + 1.2 + 0.2 = 2.2 dB total link loss
Step 5: Compare To Power Budget
Check your transceiver's optical power budget, which is the transmit power minus receiver sensitivity. If the power budget exceeds the total link loss plus a safety margin (typically 3 dB), the link should work reliably.
In our example, 2.2 dB loss plus 3 dB margin means that 5.2 dB is required. If your transceiver's power budget is 10 dB, you have an adequate margin, and the link will work reliably. If the power budget is only 5 dB, the link doesn’t have enough margin and will perform unreliably or fail altogether.
Fiber Optic Loss FAQs
What Is Fiber Optic Loss?
Fiber optic loss, also called optical attenuation, is the reduction in optical power as a signal travels through a fiber link. Light weakens as it passes through the glass, scatters at connection points, and leaks out at tight bends. Loss is measured in decibels (dB), with higher values meaning more signal lost. It is a normal part of every fiber run, not a defect, but it has to be accounted for so the link still delivers enough power at the receiving end to work reliably.
What Causes Fiber Optic Loss?
Several factors add up across a link. The glass itself absorbs and scatters light, producing attenuation measured per kilometer. Every connector pair adds a fixed amount of loss, typically 0.2 to 0.75 dB depending on the connector type. Splices add loss too, roughly 0.02 to 0.1 dB for a fusion splice and more for a mechanical one. Bends cause loss when the fiber is routed tighter than its minimum bend radius or pinched during installation. Contamination on a connector is one of the most common and most preventable causes.
What Does dB Loss Mean In Fiber Optics?
Fiber loss is measured in decibels, and the scale is logarithmic rather than linear, which trips up a lot of people. A 3 dB loss means half of the optical power is gone. A 10 dB loss means 90% of it is gone. Because the scale compounds this way, small differences in dB have an outsized effect on whether a link works, especially over long distances or when several loss sources stack up in series. That is why loss budgets are calculated carefully instead of estimated.
How Do You Measure Fiber Optic Loss After Installation?
You verify an installed link with two standard test tools. An Optical Loss Test Set (OLTS) measures end-to-end insertion loss for the whole link, which is the primary certification result every professional run should have on record. An Optical Time-Domain Reflectometer (OTDR) sends a light pulse down the fiber and reads the reflections to pinpoint where individual loss events occur, not just the total. Together they confirm the link performs as designed and create a documented baseline you can compare against if problems appear later.
How Do You Calculate Fiber Loss Before Installation?
You run a link budget calculation, which predicts total loss before any cable is pulled. Add three things together: cable attenuation (the fiber's dB per kilometer multiplied by the run length), connector loss (the number of connector pairs times the per-pair loss), and splice loss (the number of splices times the per-splice loss). The sum is your total link loss. Then compare it to your transceiver's power budget, which is transmit power minus receiver sensitivity. If the power budget clears the total loss plus a safety margin, the link should perform reliably.
How Much Fiber Optic Loss Is Acceptable?
There is no single universal number. A link is acceptable when its total loss, plus a safety margin of roughly 3 dB, stays below your transceiver's power budget. If your power budget is 10 dB and your calculated loss is 2.2 dB, you have plenty of headroom. If the budget is only 5 dB against that same loss and margin, the link runs unreliably or fails. So acceptable loss is always relative to the equipment on each end, which is exactly why the link budget is worth calculating up front.
What Is The Difference Between Single-Mode And Multimode Fiber Attenuation?
Single-mode fiber has dramatically lower attenuation per kilometer than multimode, which is why it is specified for any run where distance matters, including backbone infrastructure, inter-building links, campus connectivity, and carrier circuits. As a reference point, OS1 single-mode fiber runs around 0.4 dB per kilometer. Multimode carries higher loss per kilometer, so it is generally reserved for shorter runs inside a building. Attenuation also shifts with the operating wavelength, so the fiber type and the wavelength together set the per-kilometer loss you plan around.
How Much Loss Does A Fiber Connector Add?
Each connector pair adds a fixed amount of loss regardless of how long the run is. A standard LC or SC UPC pair adds about 0.3 dB, an APC pair around 0.2 dB thanks to its angled polish, and an MPO or MTP connector 0.5 to 0.75 dB because aligning multiple fibers is harder. A clean LC pair can perform near 0.1 to 0.2 dB, but a contaminated connector can add several dB and push the whole link over budget. That makes inspection and cleaning before every mating one of the easiest ways to control loss.
Build A Better Fiber Infrastructure With TailWind
You have two paths with fiber loss: understand it and account for it before deployment, or discover its effects after your network goes live. One choice creates infrastructure that works. The other creates infrastructure that fails and must be redone.
At TailWind, our structured cabling experts have the technical knowledge and certified equipment to design links within budget, install them with proper connector management, and verify performance with comprehensive testing and documentation – so you get cabling that performs reliably across the entire lifespan of your network.
